Product Specification
|
Parameter |
Specification |
|
Build Size |
290 × 207 × 138 mm |
|
Resolution |
2900 × 2900 × 1700 dpi, layer thickness: 15 μm |
|
Accuracy |
±0.04 mm per 20 mm of part dimension |
|
Slicing Software |
ORI3DPrint |
|
File Formats |
STL, SLC, OBJ |
|
Material Packaging |
Model material: 3 kg per cartridge, Support material: 3.6 kg per cartridge (2 cartridges of each type can be installed in one machine) |
|
Machine Dimensions |
1310 × 770 × 1670 mm |
|
Machine Weight |
Gross weight: 636 kg, Net weight: 486 kg |
|
Power Requirement |
220-240V AC, 50/60Hz, 23A |
|
I/O |
220-240V AC, 50Hz, 10A, single C14 socket |
|
Warranty |
1-year warranty on parts and labor for the whole machine |

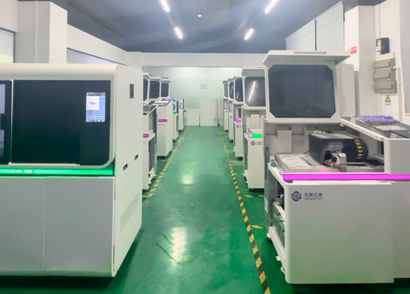

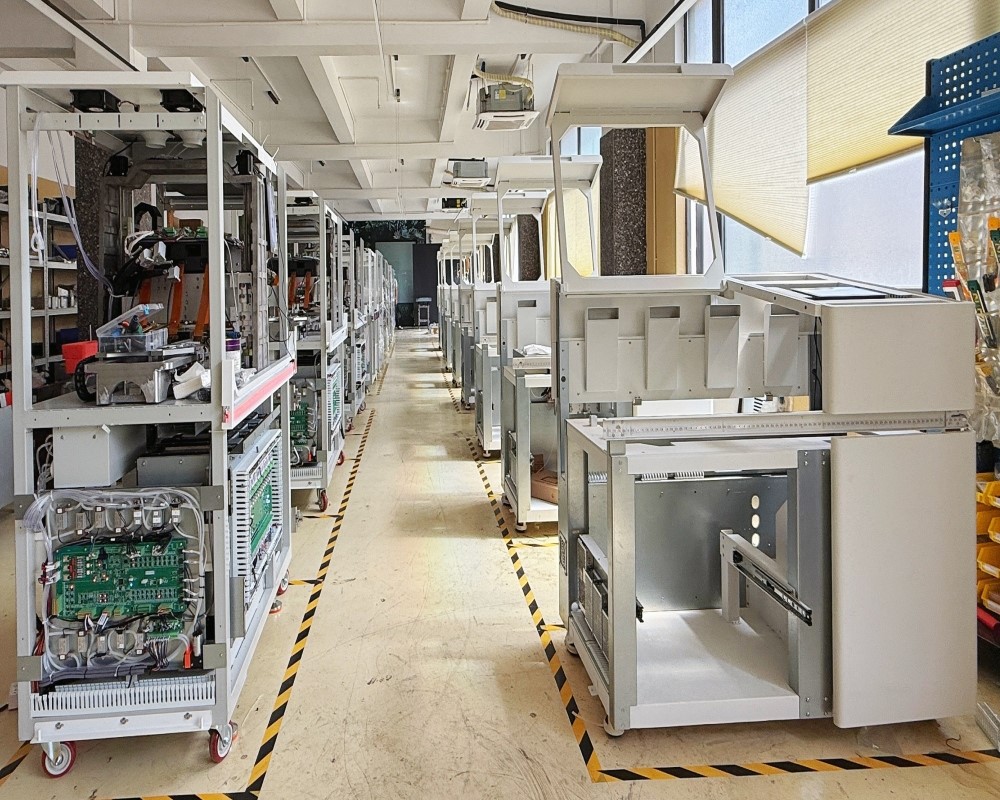

Hangzhou Originator 3D Technology Co., Ltd. is one of the leading manufacturers and suppliers of jewelry casting 3d printer in China. Welcome to wholesale durable jewelry casting 3d printer made in China here from our factory. If you have any enquiry about cooperation, please feel free to email us.

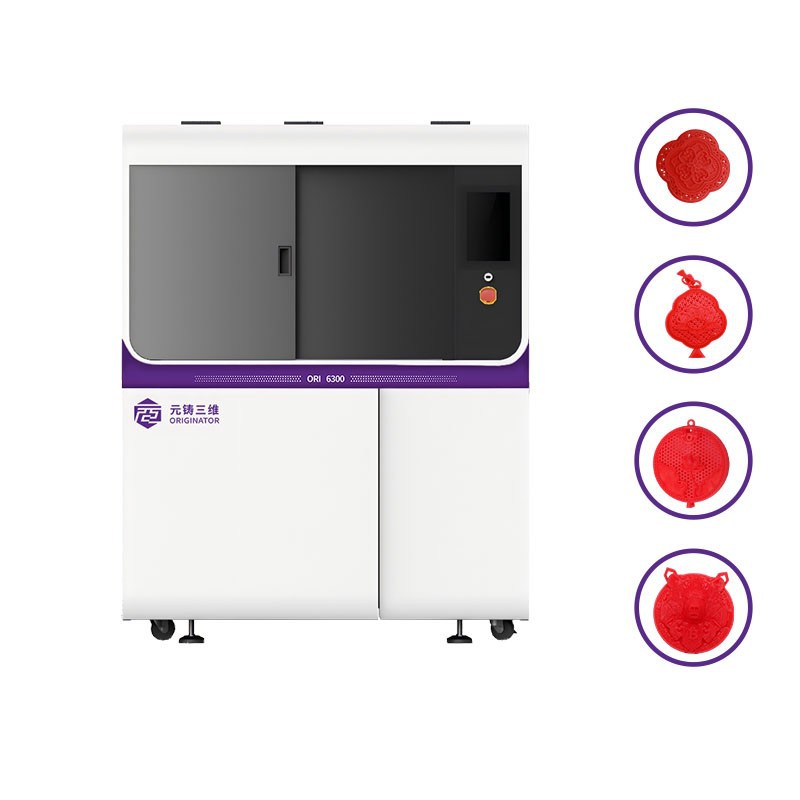

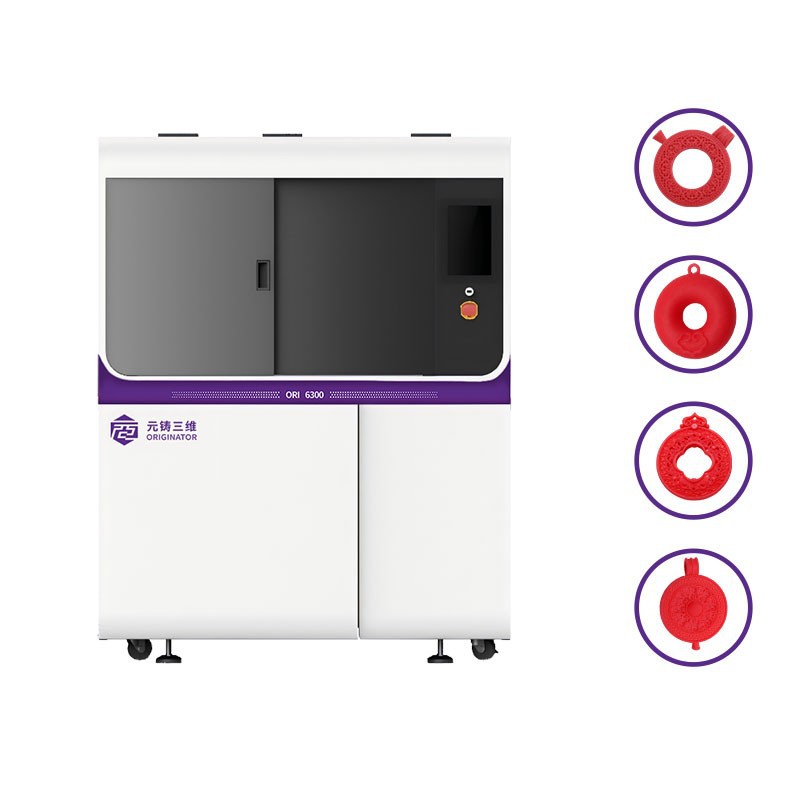

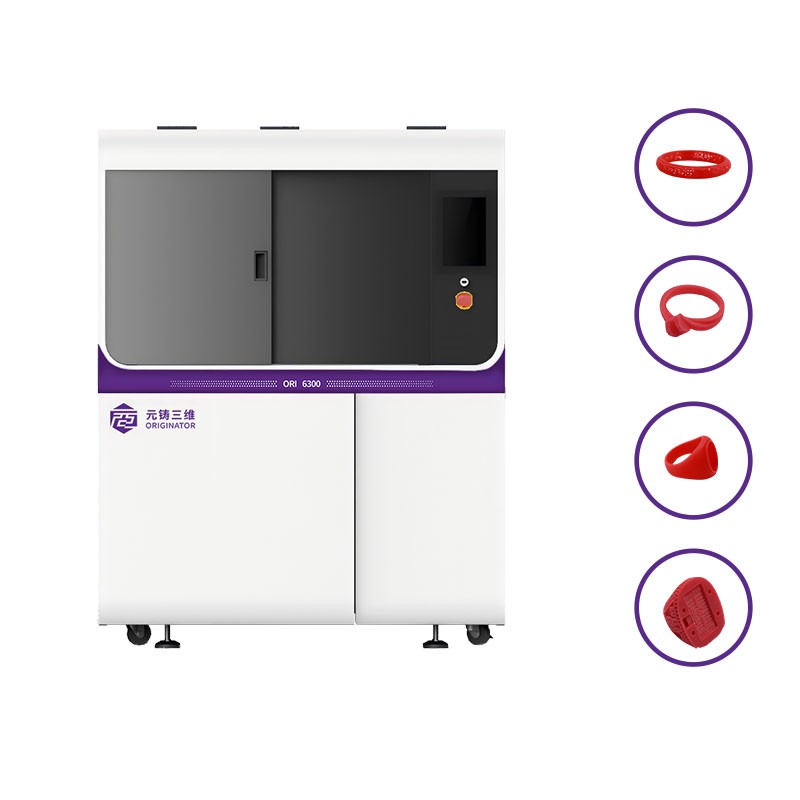

ORI-053 Jewelry Casting 3D Printer
With its triple-printhead collaboration technology designed for accuracy and efficiency, Originator 3D's ORI-053 jewelry casting 3D printer is revolutionizing the production of wax molds. In the fast-paced jewelry and precision casting sectors, this pro-level wax 3D printer is more than just a tool-it's your hidden weapon, combining the freedom of customisation with the power of mass production.
With a resolution of 2900 x 2900 x 1700 dpi, it produces jewelry casting patterns and precision molds that are incredibly fine and intricate. Every detail is smooth and crisp with unwavering dimensional accuracy, eliminating the need for post-processing. The high-contrast wax combination (ORI-610 red build wax + ORI-110 white support wax) simplifies support removal and improves modeling clarity, saving you time on laborious touch-ups.
Even new team members can quickly become proficient with a bilingual interface; no expertise is needed. Additionally, you can print multiple pieces at once or work on larger designs without having to make any adjustments because to its enormous build volume (290x207x138mm).
Triple-printhead parallel printing significantly reduces batch time, resulting in shorter production cycles without sacrificing quality. Because it is quick, precise, and simple to operate, the ORI-6300 is the best equipment for casting jewelry. It keeps you ahead of the competition, saves money, and allows you to manufacture more jewelry.
Advantages
Superior Precision Molding
Surface precision of up to 4μm allows for the precise creation of intricate hollow structures, thin walls, inner cavities, and delicate textures.
Mold-Free Quick Production
reduces expenses by more than 30% and shortens the production cycle by 70% by doing away with the need to open molds, repair wax, and create patterns.
Freedom of Complex Structure
creates unique structures that are impossible to achieve using conventional methods.
Flexible Small-Batch Production
One-piece production is possible, and multi-version parallel printing makes it perfect for customisation and iterative development.
Ideal for Accurate Casting
entirely compatible with the lost wax casting process, with a focus on 3D printing industrial wax patterns.

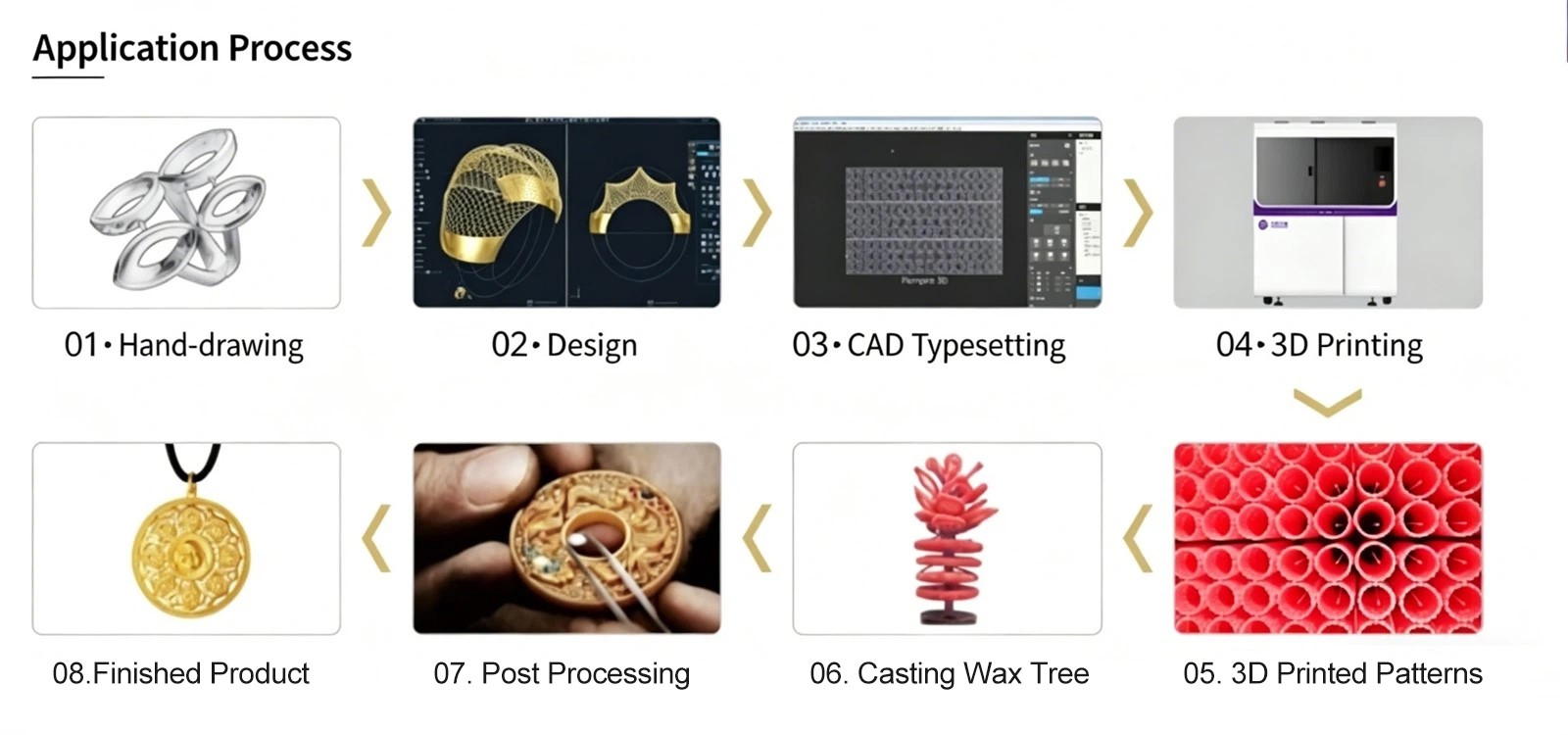

Applications
Production of Jewelry Casting
making elaborate jewelry casting patterns for rings, pendants, earrings, and opulent decorations using 3D printing.
01
Casting of Lost Wax for Precision Parts
producing precise wax molds for metal casting, mechanical parts, and industrial components.
02
Quick Validation of Prototypes
Wax prototypes are quickly printed for product development iterations, structural testing, and design verification.
03
Personalized Sculpture and Art Creation
creating one-of-a-kind sculptures, artwork, insignia, and intricately detailed craft models.
04
Flexible & Small-Batch Production
facilitating efficient small-batch mold manufacturing for a variety of orders and on-demand bespoke production.
05
